Customer Management

6/6/23About 8 min

Customer Management

Customer Import API

/wscrm-bus-api/customer/api/batchImport

Request Method

POST , Content-Type : application/json

Request Parameter Description

Parameter Name	Type	Required	Remarks
tenantId	Long	Yes	Company id
data	List	Yes	Import data

data Parameter Description

Parameter Name	Type	Required	Remarks
agentAccount	String	Yes	Agent account
whatsApp	String	Yes	whatsApp
friendName	String	Backend setting	Name
sex	String	Backend setting	Gender: unknown, male, female
birthday	String	Backend setting	Birthday: 2020/03/08 (currently only this format is supported)
address	String	Backend setting	Address
email	String	Backend setting	Email
profession	String	Backend setting	Profession
income	String	Backend setting	Income
desc	String	Backend setting	Remarks

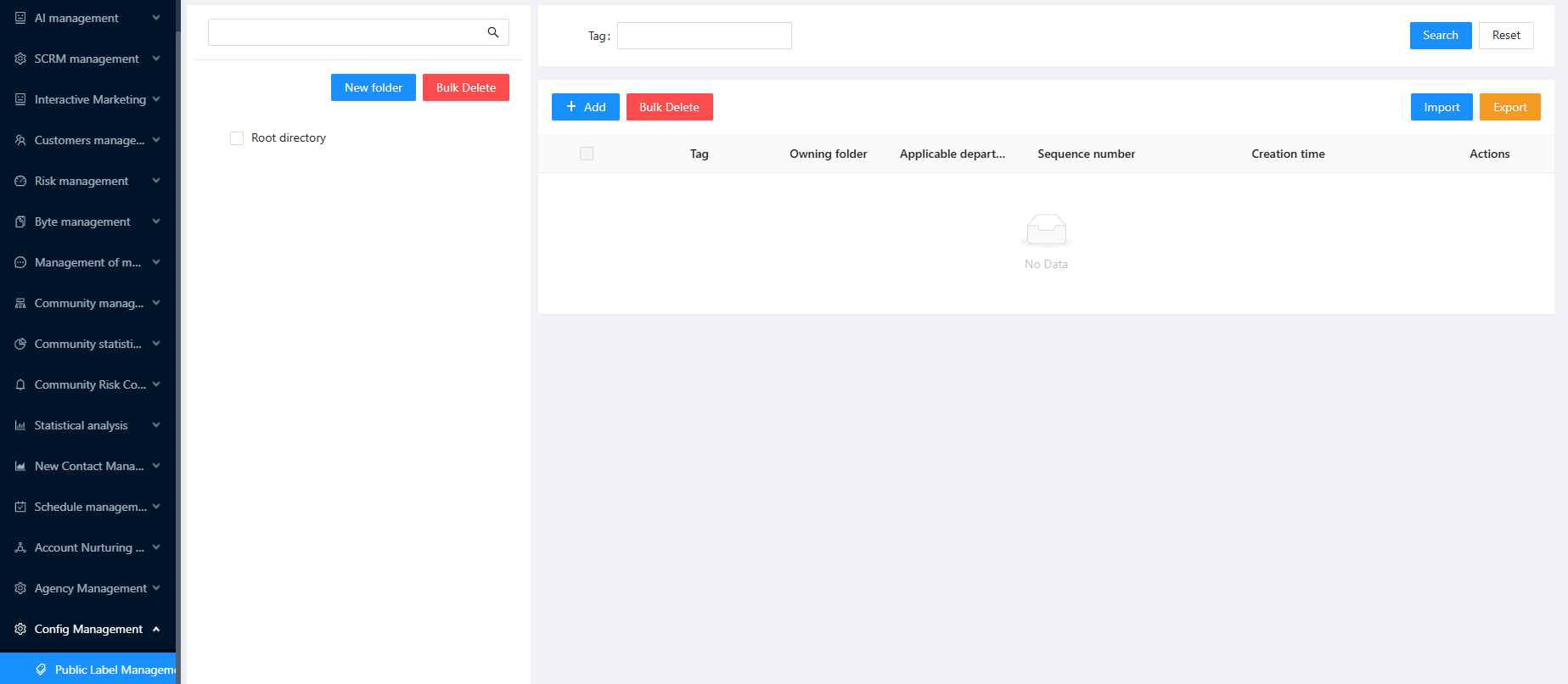

tabName	Stirng	Backend setting	Tag names: Tag A, Tag B (separated by English commas)
cancelTabName	Stirng	No	Tags to remove; ignored when empty
stage	String	Backend setting	Customer stage
source	String	Backend setting	Customer source
languageTag	String	Backend setting	Customer language: Data from backend template sheet2, recognized by backend language settings For example:Simplified Chinese (ZH) / Chinese Simplified (EN)
welcome	String	No	Welcome message
ExtensionField	String	Backend config	See detailed explanation below

Request Example:

{
        "tenantId": 82,
        "data":[
            {
                "agentAccount": "kubrick101",
                "whatsApp": "8615266667780",
                "friendName": "Feng Changqing",
                "sex": "male",
                "birthday": "2020/03/08",
                "address": "Chang'an",
                "email": "fengchangqing@tang.com",
                "profession": "Military Governor",
                "income": "100 gold",
                "desc": "",
                "tabName": "Soldier,Strategy",
                "cancelTabName":"Strategy"
                "stage": "New customer",
                "source": "System assignment",
                "Faction": "Guanlong Group",
                "extensionField1": "This is the value of extensionField1",
                "languageTag": "Auto", // Customer language inferred by current logged-in agent account, optional
                "welcome": "This is a welcome message"
            }
        ]
}

Parameter Retrieval Method

agentAccount: Agent login account used to distinguish WhatsApp ownership by agent. Contact administrator to obtain.

Extension Field Explanation

Based on backend customer settings: pass extension field name as key and extension field value as value,
For example:
Text:"ha-hi": "ha-ha-hi"
Number:"Numeric extension field": 123
Date:"Date extension field": "2022-03-08"
Time:"Time": "12:00:00"
Single select:"Single-select": "Single-select"
Multi select: "Multi-select": "A,B"

Response Parameter Description

Parameter Name	Type	Remarks
data	String	Data (excel)
msg	String	Error message
code	String	Returned status code (200、500、-1) -1 means parameter error

data Parameter Description

Parameter Name	Remarks
errExcel	Failed phone numbers and reasons
errCount	Failed count

Success Example

{
        "code": 200,
        "message": "Success",
        "data": {
            "successExcel": [],
            "errExcel": [],
            "successCount": 2,
            "errCount": 0,
            "notFollowSuccessCount": "",
            "notFollowSuccessExcels": []
        }
}

Error Example:

{
        "code": 200,
        "message": "Success",
        "data": {
            "successExcel": [],
            "errExcel": [
                {
                "errPhone": "",
                "errInfo": "PHONE_ERROR",
                "errCode": 28
                },
            ],
            "successCount": 0,
            "errCount": 2,
            "notFollowSuccessCount": "",
            "notFollowSuccessExcels": []
        }
}

Customer Import API (Into Import Pool)

Import Pool Notes
1. Each API import overwrites previous data; different agents are isolated.
For example: First, two contacts were imported for agent Wang Wu（861821733142,861272562622）。Second, one more contact was imported for Wang Wu（861272562622） At this point Wang Wu only has (861272562622).

/wscrm-bus-api/customer/api/batchImportWhatsContact

Request Method

POST , Content-Type : application/json

Request Parameter Description

Parameter Name	Type	Required	Remarks
tenantId	Long	Yes	Company id
data	List	Yes	Import data

data Parameter Description

Parameter Name	Type	Required	Remarks
agentAccount	String	Yes	Agent account
whatsApp	String	Yes	whatsApp
friendName	String	Backend setting	Name
sex	String	Backend setting	Gender: unknown, male, female
birthday	String	Backend setting	Birthday: 2020/03/08 (currently only this format is supported)
address	String	Backend setting	Address
email	String	Backend setting	Email
profession	String	Backend setting	Profession
income	String	Backend setting	Income
desc	String	Backend setting	Remarks
tabName	String	Backend setting	Tag names: Tag A, Tag B (separated by English commas)
cancelTabName	Stirng	No	Tags to remove; ignored when empty
stage	String	Backend setting	Customer stage
source	String	Backend setting	Customer source
languageTag	String	Backend setting	Customer language: Data from backend template sheet2, recognized by backend language settings For example:Simplified Chinese (ZH) / Chinese Simplified (EN)
welcome	String	No	Welcome message
ExtensionField	String	Backend config	See detailed explanation below

Request Example:

{
        "tenantId": 82,
        "data":[
            {
                "agentAccount": "kubrick101",
                "whatsApp": "8615266667780",
                "friendName": "Li Heng",
                "sex": "male",
                "birthday": "2020/03/08",
                "address": "Chang'an",
                "email": "liheng@tang.com",
                "profession": "Emperor",
                "income": "10000 gold",
                "desc": "Emperor Suzong of Tang",
                "tabName": "Prince Zhong,Retake Two Capitals",
                "cancelTabName": "Prince Zhong",
                "stage": "New customer",
                "source": "System assignment",
                "Faction": "Royal Family",
                "extensionField1": "This is the value of extensionField1",
                "languageTag": "Auto", // Customer language inferred by current logged-in agent account, optional
                "welcome": "This is a welcome message"
            }
        ]
}

Parameter Retrieval Method

agentAccount: Agent login account used to distinguish WhatsApp ownership by agent. Contact administrator to obtain.

Extension Field Explanation

Based on backend customer settings: pass extension field name as key and extension field value as value. For example:
Text: "ha-hi": "ha-ha-hi"
Number: "Numeric extension field": 123
Date: "Date extension field": "2022-03-08"
Time: "Time": "12:00:00"
Single select: "Single-select": "["Single-select"]"
Multi select: "Multi-select": "A,B"

Response Parameter Description

Parameter Name	Type	Remarks
data	String	Data (excel)
msg	String	Error message
code	String	Returned status code (200、500、-1) -1 means parameter error

data Parameter Description

Parameter Name	Remarks
errExcel	Failed phone numbers and reasons
errCount	Failed count

Success Example

{
        "code": 200,
        "message": "Success",
        "data": {
        "successExcel": [],
        "errExcel": [],
        "successCount": 2,
        "errCount": 0,
        "notFollowSuccessCount": "",
        "notFollowSuccessExcels": []
        }
}

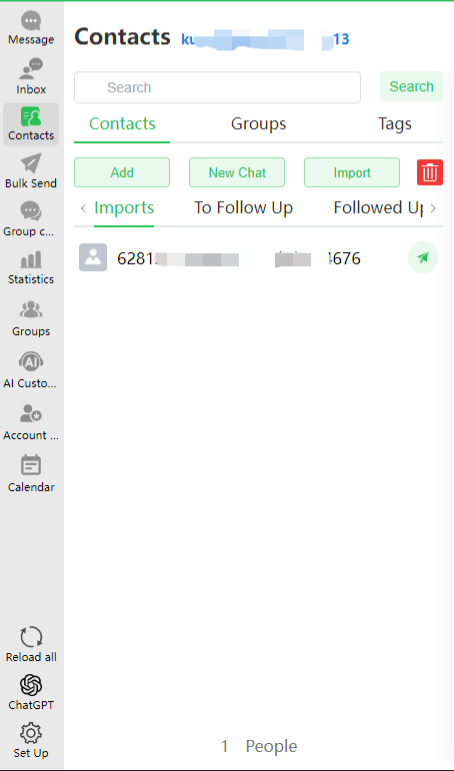

Import succeeded. View it in PC client (Contacts - Import Pool).

Error Example:

{
        "code": 200,
        "message": "Success",
        "data": {
            "successExcel": [],
            "errExcel": [
                {
                    "errPhone": "",
                    "errInfo": "PHONE_ERROR",
                    "errCode": 28
                },
            ],
            "successCount": 0,
            "errCount": 2,
            "notFollowSuccessCount": "",
            "notFollowSuccessExcels": []
        }
}

Customer Import API (Append to Import Pool)

Import Pool Notes
1. Each API import overwrites previous data; different agents are isolated.
For example: First, two contacts were imported for agent Wang Wu（861821733142,861272562622）。Second, one more contact was imported for Wang Wu（861272562623） At this point Wang Wu has three contacts (861821733142,861272562622,861272562623).

/wscrm-bus-api/customer/api/batchImportAppendV2

Request Method

POST , Content-Type : application/json

Request Parameter Description

Parameter Name	Type	Required	Remarks
tenantId	Long	Yes	Company id
data	List	Yes	Import data

data Parameter Description

Parameter Name	Type	Required	Remarks
agentAccount	String	Yes	Agent account
whatsApp	String	Yes	whatsApp
friendName	String	Backend setting	Name
sex	String	Backend setting	Gender: unknown, male, female
birthday	String	Backend setting	Birthday: 2020/03/08 (currently only this format is supported)
address	String	Backend setting	Address
email	String	Backend setting	Email
profession	String	Backend setting	Profession
income	String	Backend setting	Income
desc	String	Backend setting	Remarks
tabName	String	Backend setting	Tag names: Tag A, Tag B (separated by English commas)
stage	String	Backend setting	Customer stage
source	String	Backend setting	Customer source
languageTag	String	Backend setting	Customer language: Data from backend template sheet2, recognized by backend language settings For example:Simplified Chinese (ZH) / Chinese Simplified (EN)
welcome	String	No	Welcome message
ExtensionField	String	Backend config	See detailed explanation below

Request Example:

{
        "tenantId": 82,
        "data":[
            {
                "agentAccount": "kubrick101",
                "whatsApp": "8615266667780",
                "friendName": "Li Heng",
                "sex": "male",
                "birthday": "2020/03/08",
                "address": "Chang'an",
                "email": "liheng@tang.com",
                "profession": "Emperor",
                "income": "10000 gold",
                "desc": "Emperor Suzong of Tang",
                "tabName": "Prince Zhong,Retake Two Capitals",
                "stage": "New customer",
                "source": "System assignment",
                "Faction": "Royal Family",
                "extensionField1": "This is the value of extensionField1",
                "languageTag": "Auto", // Customer language inferred by current logged-in agent account, optional
                "welcome": "This is a welcome message"
            }
        ]
}

Parameter Retrieval Method

agentAccount: Agent login account used to distinguish WhatsApp ownership by agent. Contact administrator to obtain.

Extension Field Explanation

Based on backend customer settings: pass extension field name as key and extension field value as value. For example:
Text: "ha-hi": "ha-ha-hi"
Number: "Numeric extension field": 123
Date: "Date extension field": "2022-03-08"
Time: "Time": "12:00:00"
Single select: "Single-select": "["Single-select"]"
Multi select: "Multi-select": "A,B"

Response Parameter Description

Parameter Name	Type	Remarks
data	String	Data (excel)
msg	String	Error message
code	String	Returned status code (200、500、-1) -1 means parameter error

data Parameter Description

Parameter Name	Remarks
errExcel	Failed phone numbers and reasons
errCount	Failed count

Success Example

{
        "code": 200,
        "message": "Success",
        "data": {
        "successExcel": [],
        "errExcel": [],
        "successCount": 2,
        "errCount": 0,
        "notFollowSuccessCount": "",
        "notFollowSuccessExcels": []
        }
}

Import succeeded. View it in PC client (Contacts - Import Pool).

Error Example:

{
        "code": 200,
        "message": "Success",
        "data": {
            "successExcel": [],
            "errExcel": [
                {
                    "errPhone": "",
                    "errInfo": "PHONE_ERROR",
                    "errCode": 28
                },
            ],
            "successCount": 0,
            "errCount": 2,
            "notFollowSuccessCount": "",
            "notFollowSuccessExcels": []
        }
}

Query Friend Contact API

Description
Query friend contact list of the specified customer service account
URI
/wscrm-bus-api/open/customer/query
Request Method
POST、Content-Type: application/json
Request Parameter Description

Parameter Name	Type	Required	Remarks
whatsId	String	Yes	Customer service account

Request Example:

{
  "tenantId": 520274,
  "whatsId": "86187272722"
}

Response Parameter Description
Parameter Name Type Example Remarks
code int 200 Status code
message String Success Description
data String List Data

Parameter Name	Type	Example	Remarks
code	int	200	Status code
message	String	Success	Description
data	String	List	Data

data Parameter Description

Parameter Name	Type	Remarks
whatsId	String	whatsId
name	String	User name
sex	String	Gender
email	String	Email
birthday	String	Birthday
address	String	Address
profession	String	Profession
income	String	Income
desc	String	Description
country	String	Country
stage	int	Stage (configured in backend)
source	int	Source (configured in backend)
tabList	List	Tag list, may include string arrays
firstChatTime	String	First chat time
lastChatTime	String	Last chat time
extendMap	Object	Extension field with key-value pairs; exact type depends on internal field config

Response Example

{
  "code": 200,
  "message": "Success",
  "data": [
    {
      "whatsId": "86187272722",
      "name": "",
      "sex": null,
      "email": "",
      "birthday": null,
      "address": "",
      "profession": "",
      "income": "",
      "desc": "",
      "country": null,
      "stage": 10,
      "source": 10,
      "tabList": null,
      "firstChatTime": null,
      "lastChatTime": null,
      "extendMap": {
        "Date": "2024/07/08"
      }
    }
  ]
}

Async Notification for Customer Profile Update

Description: PC-side customer profile updates (basic info and extension fields)

WebHook
Configuration ID <USER_SYNC_PORTRAIT>

Request Parameters

Parameter Name	Type	Required	Remarks
accessToken	String	Yes	Signature token
tenantId	int	Yes	Company id
timestamp	Long	Yes	Millisecond timestamp
data	List	Yes	Format: [{},{}], details below (0-50 items)

data Detailed Parameters:

Parameter Name	Type	Required	Remarks
id	String	Yes	Data id identifier (uuid)
userName	String	Yes	Agent login account
type	int	Yes	Type: 1 profile update, 2 write follow-up
friendWhatsId	String	Yes	Target customer service account
field	String	Yes	Updated field item; extension field uses field name, e.g. ext-Attachment
fieldType	int	Yes	Field type: 0 basic field, 1 extension field
fieldConfig	int	Yes	Field config: 1 single-line text, 2 multi-line text, 3 single-select, 4 multi-select, 5 number, 6 date, 7 time, 8 attachment
sourceValue	String	No	Original value
targetValue	String	No	Updated value
updateAt	String	Yes	Update time

Example request parameters:

{
  "accessToken": "83293d01dddd628e3b457142f8a48a0cf4dae3b587e7febea7effea6bdcfd344",
  "tenantId": 500975,
  "timestamp": 1667293135274,
  "data": [
    {
      "id": "a0cb1ad15ed24e618b4b12d9cdff1ad4",
      "type": 1,
      "userName": "Zhang San",
      "friendWhatsId": "8615601882491",
      "field": "Address",
      "fieldType": 0,
      "fieldConfig": 1,
      "sourceValue": "",
      "targetValue": "123123",
      "updateAt": "2022-09-29 20:34:58"
    },
    {
      "id": "81c968134be648e19187db83efa60152",
      "type": 1,
      "userName": "Zhang San",
      "friendWhatsId": "8615601882491",
      "field": "Gender",
      "fieldType": 0,
      "fieldConfig": 3,
      "sourceValue": "MALE",
      "targetValue": "FEMALE",
      "updateAt": "2022-10-02 20:34:58"
    },
    {
      "id": "4d8ac8a3a5164ab2b066dcf8fac5bd45",
      "type": 2,
      "userName": "Zhang San",
      "friendWhatsId": "33758618170",
      "field": "Follow up records",
      "fieldType": 0,
      "fieldConfig": 1,
      "sourceValue": "",
      "targetValue": "{\"data\":{\"text\":\"Hello\",\"url\":[]},\"dataTypeMap\":{\"writeFollow\":\"Write follow-up\"}}",
      "updateAt": "2022-10-31 17:44:06"
    }
  ]
}

Follow up records:
fieldType、fieldConfig、fieldType are initial values
Write follow-up sourceValue、 targetValue uses fixed format data: data(text: follow-up text, url: uploaded file URLs), dataTypeMap(value fixed format) type
field Description
fieldConfig indicates our value type mapping; optional and not mandatory field

field	fieldConfig	Description(sourceValue ->targetValue)
Name(Name)	Single-line text	String, e.g.:Xiaoming ->Xiaowang
Gender(Gender)	Single-select	String allowed values(MALE、FEMALE、UNKOWNN) e.g.:MALE -> FEMALE
DOB(Birthday)	Date	String format(yyyy-MM-dd) e.g.:2022-12-01-> 2022-12-02
Address(Address)	Single-line text	String, e.g.:Shanghai-> Beijing
Email(Email)	Single-line text	String, e.g.: 123@qq.com-> 123@163.com
Position(Profession)	Single-line text	String, e.g.: Operations->Sales
Income(Income)	Single-line text	String, e.g.: 10k -> 20k
Description(Remarks)	Multi-line text	String (with line breaks \n) e.g.: 1\n2\n3 -> 1\n2\n3\n4
From(Customer source)	Single-select	String according to backend customer settings e.g.:Default -> Self-developed
State	Single-select	String according to backend customer settings e.g.:New customer -> Requirement match
Language(Customer language)	Single-select	String according to backend customer settings e.g.:auto -> am
Tags	Multi-select	String array according to backend customer settings e.g.:[Tag 1] -> [Tag 1,Tag 2]
Multi-select(extension field custom name)	Multi-select	String array according to backend customer settings e.g.:[Multi-select 1] -> [Multi-select 1,Multi-select 2]
Time(extension field custom name)	Time	String format(HH:mm:ss) e.g.:17:26:59-> 17:27:35
Attachment(extension field custom name)	Attachment	String format(,http separated) e.g.:http://123.img,http://456.img

Return Value
Parameter Name Type Required Remarks
code int Yes Status code
message String Yes Description
data String Yes Data
- Example:
```
{
  "code": 200,
  "message": "",
  "data": ""
}
```

Parameter Name	Type	Required	Remarks
code	int	Yes	Status code
message	String	Yes	Description
data	String	Yes	Data

Follow-up Sync

Note: interface encryption rule uses headers.

Type：<USER_WRITE_FLOW>

WebHook
Request Method
POST、Content-Type: application/json
Request Parameter Description

Field	Type	Required	Remarks
accessToken	string	Yes	token
timestamp	long	Yes	Timestamp
tenantId	int	Yes	Company id
data	array	Yes	Detailed follow-up data

data Parameter Description

Field	Type	Required	Remarks
friendWhatsId	String	Yes	Target WhatsApp phone number
userId	int	Yes	Current agent id
tenantId	int	Yes	Company id
follow	String	Yes	Follow-up content
username	int	Yes	Follow-up agent account

Request Example

{
  "accessToken": "e6e18763d8d5a756d45c01486d7ad6742152ac",
  "callBackUrl": "",
  "tenantId": 82,
  "timestamp": 1667295870936,
  "data": [
    {
      "friendWhatsId": "8617633819542",
      "userId": 1221,
      "tenantId": 22,
      "follow": "{\"data\":{\"text\":\"Beautiful China\",\"url\":[]}",
      "username": "gavin"
    },
    {
      "friendWhatsId": "8617633819542",
      "userId": 1221,
      "tenantId": 222,
      "follow": "{\"data\":{\"text\":\"Beautiful China\",\"url\":[]}",
      "username": "gavin"
    }
  ]
}

Response Example

{
  "code": 200,
  "message": "Success",
  "data": ""
}

Customer Field Information

To obtain available basic fields, extension fields, and tag information, log in to admin backend to add or modify.

Basic Information & Extension Fields

Customer Field Configuration

Tag Information

Customer Tag Information

You can log in to client to verify effectiveness.

Client View of User Profile Information

Error Codes

Code	Description	Interpretation
-1	token error / TenantId Is Null / Admin Cannot import data / Data Is Null	Company/account basic information
10	Gender field sex format is invalid	sex field format error
14	Source field value does not exist	source content does not meet requirements
15	Stage field value does not exist	stage content does not meet requirements
16	Customer language value does not exist	languageTag value does not exist
19	Exceeded 10,000 record limit	Exceeded 10,000 record limit
21	Extension field content exceeds length	Extension field content exceeds specified length
22	Required field validation failed	Required field not filled
23	Extension field - number type format error	Not a valid numeric type
24	Extension field - date type format error / birthday field type format error	yyyy/MM/dd
25	Extension field - time type format error	HH:mm:ss
26	Extension field - single-select type format error	Selected multiple options or option no longer exists
27	Extension field - multi-select type format error	Selected option no longer exists
28	Phone number error	Not numeric
29	Phone number is empty	whatsApp is empty
51	Country field does not exist	Country field is empty
56	friendWhatsId data is processing	friendWhatsId is processing (one-minute interval)
58	Extension field - attachment url too long	Number of URLs exceeds 10
59	Extension field - invalid attachment URL or network fluctuation or oversized file	Invalid URL or network fluctuation or oversized file
60	Extension field - attachment file too large	Contains oversized attachment information
